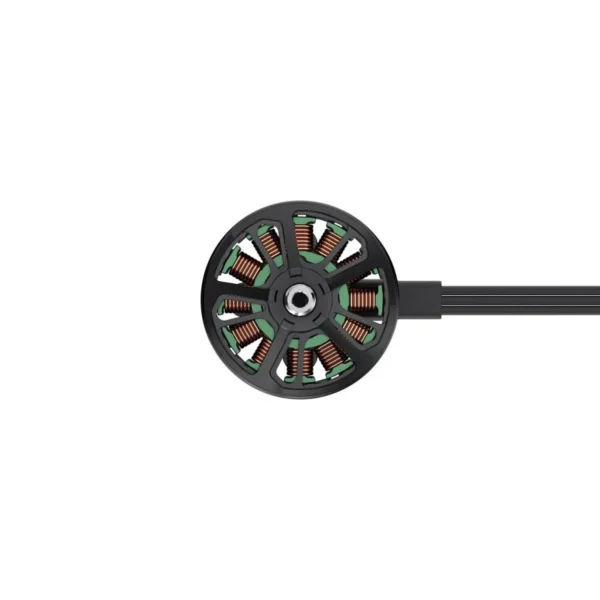

GEPRC EM2810 1280KV Motor

20.00 €

  • New EM series motors, mainly designed for long range FPV
  • High-strength M5 steel shaft
  • High torque magnetic circuit design
  • 19mmx19mm base

4 in stock

SKU: GP106122 Categories: , ,

Specifications:

  • Model: EM2810 1280KV Motor
  • Max Watt: 1160W
  • Peak current: 54A
  • Interphase resistance: 46mΩ
  • Propeller: 7-8inch Propeller
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 12N14P

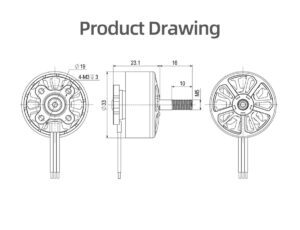

  • Dimension: φ33mmx23.1mm
  • Shaft Diameter: φ5mm
  • Shaft Protruding Length: 16mm
  • Mounting holes: 19mmx19mm
  • Lead: 260mm/18AWG
  • ESC: 50A-60A
  • Input Volts: 25.2V（6S LiPo)
  • Winding: Single strand copper winding
  • Weight: 69.5g (including wire)
  • Suitable for : 7-8 inch  long range FPV
