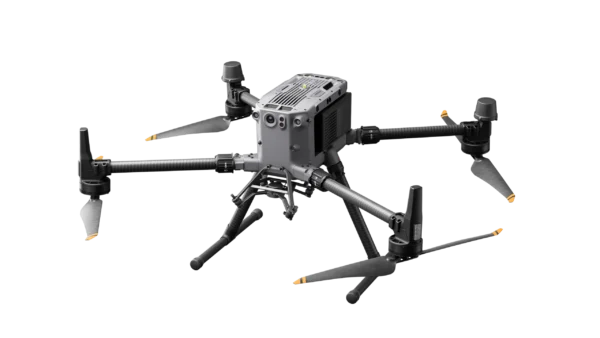

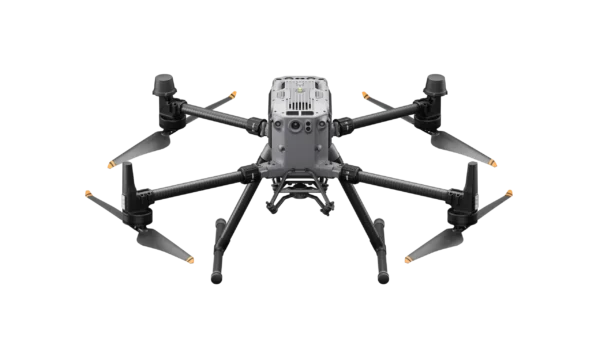

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
Effortlessly Powerful Flight Performance
55 min max flight time
IP55 protecting rating
Night-Vision FPV Camera
2.7kg Max payload
Stay Stable With New Transmission System
O3 Enterprise Transmission
Triple 1080p Live Feeds
20 km max transmission range
4 Antenna design
New Control Experience
7-inch high-brightness screen
IP 54 rating, -20 to 50℃
DJI Pilot 2
Upgraded Battery System
TB65 Battery
400 charge cycles
Next-Gen battery station
Built in Tough
Weatherproof for operation in various environments
IP55 rating for the aircraft.
IP54 rating for the RC plus
12m/s wind resistance
-20°C to 50°C | -4°F to 122°F operating range
7000m Max Flight Altitude
Enhanced Flight safety
Arm Lock Indicator
New arm lock detection function to avoid the risk of unlocked arm sleeves
Nigh-Vision FPV Camera
6-Directional Sensing & Positioning
CSM Radar
Multi-Layered Redundancy Design
Enhanced Flight safety
Arm Lock Indicator
Nigh-Vision FPV Camera
The night-vison FPV camera can clearly present the surroundings and obstacles during flight at night.
6-Directional Sensing & Positioning
CSM Radar
Multi-Layered Redundancy Design
Enhanced Flight safety
Arm Lock Indicator
Nigh-Vision FPV Camera
6-Directional Sensing & Positioning
6-directional binocular vison and infrared sensing system, providing comprehensive protection during flight
CSM Radar
Multi-Layered Redundancy Design
Enhanced Flight safety
Arm Lock Indicator
Nigh-Vision FPV Camera
6-Directional Sensing & Positioning
CSM Radar
With the CSM Radar, M350 can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time.
Multi-Layered Redundancy Design
Enhanced Flight safety
Arm Lock Indicator
Nigh-Vision FPV Camera
6-Directional Sensing & Positioning
CSM Radar
Multi-Layered Redundancy Design
Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundant design to ensure flight safety, allowing you to cope with harsh operating environments more confidently.
Stay Stable With New Transmission System
O3 Enterprise Transmission
20 km | ~12.43 miles transmission range
Improved anti-interference algorithm
Triple Channel 1080p HD live feed
Supports 5.2GHz (Only available in CE region)
Four-Antenna Design
Two additional antenna on the back of aircraft
2 Transmitting, 4 Receiving (The system will intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously)
2x media download speed
Powerful GNSS & RTK module
New GNSS Chip
M350 RTK equips new GNSS chip which has better signal reception and can get more satellites.
New RTK Module
The new RTK module supports GPS L5 band. After turning on RTK, the RTK would be fixed faster and easier.
Upgraded Battery System
TB65 Intelligent Flight Battery
400 charge cycles
Self-heating in low temperature
Self-discharge for storage
Charge without waiting for cooling*
*The Ambient temperature should be below 37℃. When the Ambient temperature is 50℃, will need to wait around 15mins for cooling

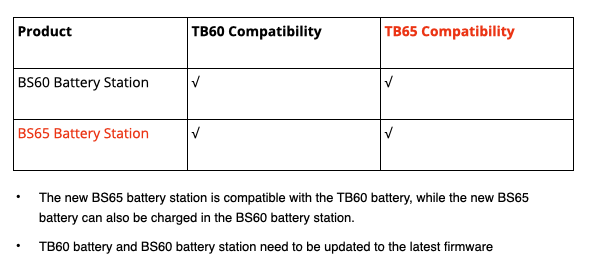

BS65 Battery Station
8 x TB65 Battery Ports, 4 x WB37 Battery Ports, 1x USB-C Maintenance Port, 1 x USB-C Charging Portand 1 x USB-A Charging Port
Charges two aircraft batteries, one RC battery (WB37), and one RC Plus at the same time
Intelligent Management:When the station is connected to RC Plus, it will display the battery health information
Upgraded Battery System
Multiple Charging Mode
Standard Mode
Each pair is charged to 100% in sequence (will self- discharge)
60 min from 0 to 100%
Recommend for general user
Ready-To-Fly Mode
Each pair is charged to 90% in sequence and kept at 90%
30 min from 20 to 90%
Recommend for first responders
Storage Mode
Each pair is charged and kept at 50%
Recommend for long-term storage
Optimized Aircraft and battery cases
M350 Carrying Case
Universal wheel, easier to move
Dual payload slot, can carry two payload at the same time
800 x 359 x 543 mm, 31% reduced compared with M300 carrying case
BS65 Battery Station
580 mm×358 mm × 254 mm, 8.98 kg
Universal wheel, easier to move
Can carry 8 x TB65 and 4 x WB37 for transportation
Powerful Payloads
With a max payload capacity of 2.7 kg, the aircraft can carry up to three gimbal brackets and four payloads
Supported Gimbal
Single downward gimbal, dual downward gimbals, and single upward gimbal
E-Port Open Interface
E-Port is a new generation of open interface on DJI Enterprise drones, and the pin definition is consistent with the OSDK interface.
E-port can realize the functions of both OSDK and PSDK interface
DJI Payloads
Meeting the needs of different operation scenarios like public safety, inspection, and mapping.
Hybrid Sensor – H20Series
The four-sensor system of zoom camera, wide camera, thermal camera, and laser rangefinder.
Starlight – H20N
Starlight zoom and wide-angle cameras, dual zoom thermal cameras and a laser rangefinder.
Full-Frame Surveying Camera – P1
Full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions.
Lidar – L1
Livox Lidar module, a high-accuracy IMU, and a mapping camera, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.
*Existing payloads need be updated to the latest firmware to adapt M350 RTK.
Third party payloads
Spotlight
Multispectral sensor
Megaphone
5-lens camera
Laser methane telemeter
Spectrum analyzer
Gas detector
50mm thermal imaging sensor
4-in-one UV sensor
Existing 3rd party payloads for M300 need to be updated to support the M350, and some need be upgraded the Skyport from V1 to V2, please consult the payload vendors for details.
Accessories
DJI RC Plus
7 inch screen, 1200 cd/m² brightness
IP54 rating, -20 to 50℃
8-core chip, 4x CPU and 7x GPU power compared to Controller Enterprise
Improve flight performance in high altitude environment
The noise of the propellers is reduced by 2 dB compared to the 2110s propellers
Professional Software
DJI Pilot 2
The RC has built-in DJI Pilot 2 APP
Supports multiple mission planning options, including waypoint, mapping, oblique, linear.
DJI FlightHub 2
Flight Hub 2 features are also available including live streaming, aircraft info, live 2D mapping, panorama and media upload, and mission planning.
DJI Terra
All-in-one Platform: 2D/3D, multispectral, Lidar point cloud reconstruction.
Various types of deliverables to satisfy multiple business needs.
DJI Thermal Analysis tool 3.0
DJI Thermal Analysis Tool 3 is supported at launch allowing you to create a report and manipulate the radiometric thermal data with the specific parameters following data capture.
Extensibility
Payload SDK
Provides three integration ways, E-Port, SkyPort V2 and DJI X-Port, greatly reducing the development cycle of payloads
Mobile SDK
Easily deploy custom apps for your fleet of DJI drones using mobile devices, enabling managers to optimize flights across their operations
Cloud API
No more App development. Synchronize the drone with your cloud platform directly through DJI Pilot2
User Data Security & Compliance
Media Data Encryption
Local Data mode
One-Tap Clear All Device Data
AES-256 Video Transmission Encryption
Private Deployment (Cloud API)
C3 Marking* (For EU Region)
* The C2 marking for Mavic 3 Enterprise Series and M30 Series will also be finished within this year.
High-precision Mapping
Multiple Mission Flight
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions; Supports Terrain Follow or Smart Oblique for efficient data collection
High-Precision
RTK positioning, TimeSync feature, ensuring high accuracy without GCP.
Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.
Air-To-Ground Coordination
Information Synchronization
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together.
After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators.
Automated Precision Inspection
Automated Inspection
Through Live Mission Recording, it can generate and store flight route files that can be used at any time to realize automated operation.
When using AI Spot-Check, it supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.
