Slim yet Rugged, Compact yet Bright

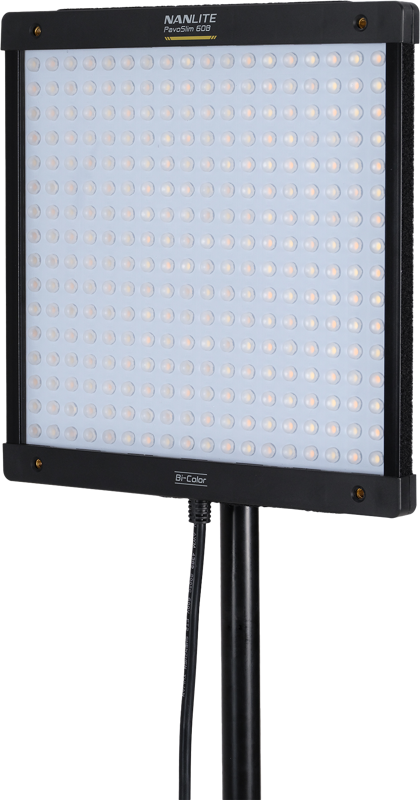

Nanlite has once again explored the potential of the panel light source, bringing creators a new generation of LED panel light: The PavoSlim. The slim and lightweight design, fast and convenient installation, high luminance, and accurate color rendering are combined to create the bi-color PavoSlim 60B/120B. The PavoSlim will empower creators with more flexible options to achieve their visions.

Metal Housing, Efficient Heat Dissipation, Meticulous Optical Lens, Efficient Converging Light (Achieving 4 times the output compared to the average output of similar products)

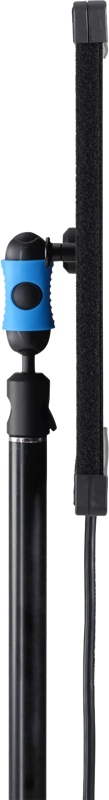

Slim and Lightweight yet Tough (only 1.86cm thick)
Rapid Setup within one minute
Wireless Control Nanlink APP
Rated Power: 72W Weight: 0.91 kg Thickness: 1.86cm

With the metal housing, the PavoSlim 60B proves that slimness and ruggedness are not contradictory. Even after being equipped with a complete set of diffusers and accessories for installation, it remains lighter and thinner compared to traditional light mats. This makes it necessary no matter in small studios, low-ceiling locations, or film and television sets with strict requirements.

Efficient Design, Maximum Output

The Nanlite team has developed a dedicated optical system for the individual chip of PavoSlim. Combining efficient heat dissipation and an excellent optical design, the PavoSlim achieves 4 times the output compared to the average output of similar products.

PavoSlim 60B: 8156 lux @ 1m (light only, 5600K)

Rapid Deployment

Every element of the PavoSlim 60B/120B is designed for rapid deployment since every minute counts on set.

Even the accessories are designed with the same philosophy for easy and rapid setup, enabling creators to effortlessly complete installation within one minute.

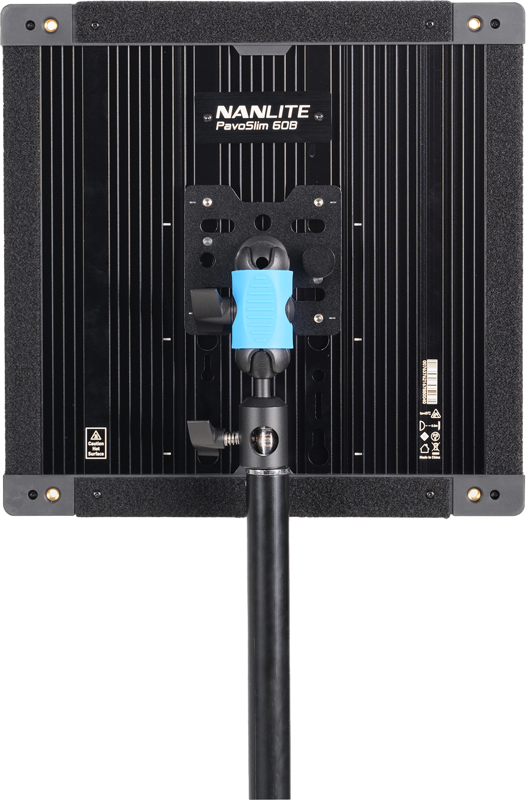

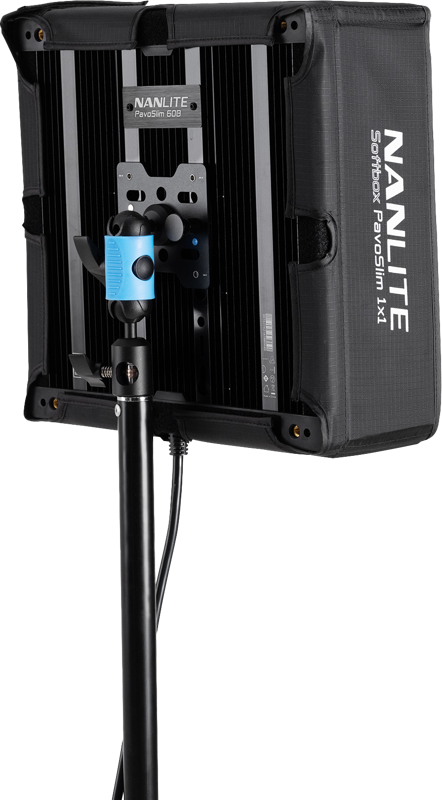

The back of the fixture has multiple sockets for installation, meeting flexible needs in various situations. The control unit is designed with a quick-release plate, which is compatible with the quick-release clamp (optional) that also used for the Forza II series fixtures (suitable for light stands and trusses). The control unit can also be hung on the light stand by its strap.

Various Modes

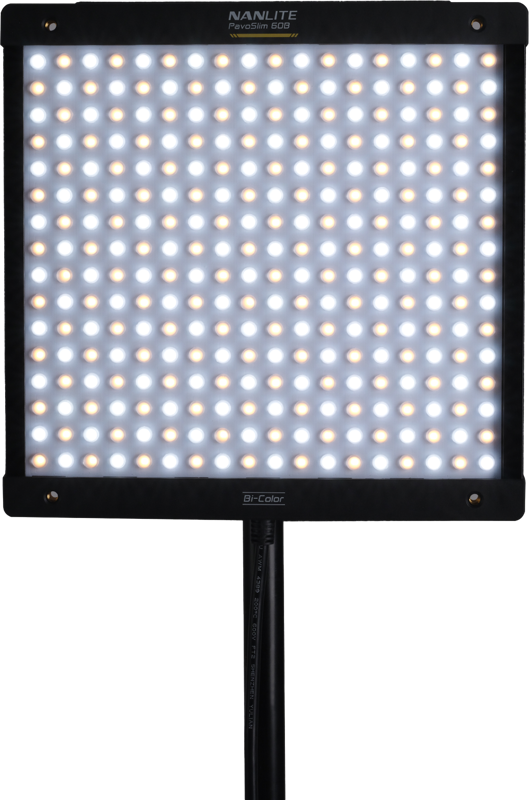

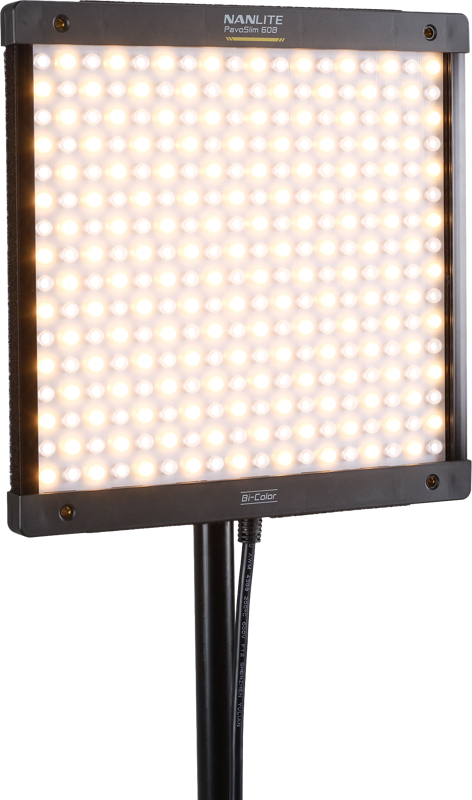

CCT Range: 2700K-6500K CRI: Average 95 TLCI: Average 97 TM-30 Rf: Average 95 Rg: Average 102 SSI 3200K: 83 5600K: 73.

PavoSlim 60B/120B are equipped with 12 effects for simulating real scene lighting effects. Various parameters of each effect can be tuned on-board, while more customized settings can be obtained by the Nanlink App and DMX/RDM.

Professional Control Options

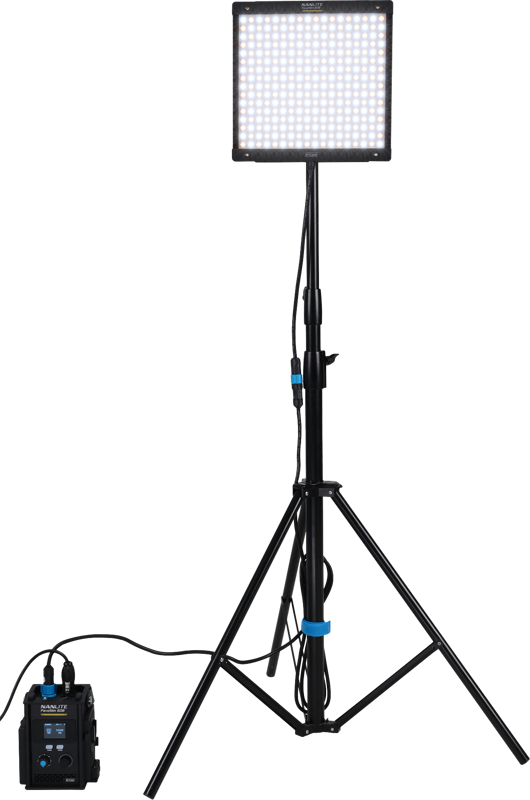

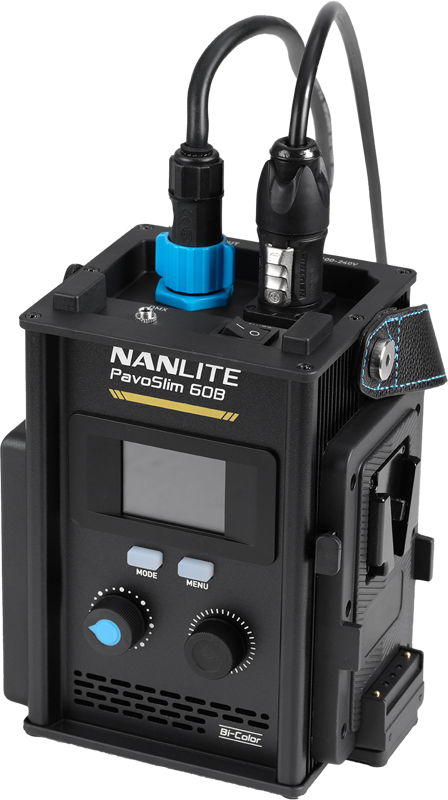

The PavoSlim 60B can be controlled on the included power control unit. The design of two buttons, two knobs, and the two-inch screen makes the operation straightforward.

With built-in 2.4G and Bluetooth modules, the PavoSlim can be easily connected to the Nanlink App. This not only helps users easily achieve wireless intelligent control for lighting in small and medium spaces like studios but also makes it possible to integrate with point-source and tube lights from Nanlite to create diverse and complementary lighting solutions for scenes.

In addition, through the stable connection and control via wired DMX/RDM, PavoSlim can be applied in the film and TV standard control system, jointly.

Multiple Power Options, Deploy Anywhere

The PavoSlim 60B/120B provide multiple power supply methods: PavoSlim 60B can be powered by AC power, V-mount batteries, and NP-F batteries, Besides, the PavoSlim 60B support hot swapping among different power supply modes, allowing for ongoing shooting without interrupting operations.

PavoSlim 60B Power Supply Options: AC power supply, 14.4-14.8V V-mount battery, 26V V-mount battery, 7.4V NP-F battery (×2).

Multiple Accessories

Magnetic Base Adapter with 1/4″-20 Thread Set Each corner of the PavoSlim is built with one 1/4″-20 mount, which can be paired with the magnetic base adapter with 1/4″-20 thread set, making installation faster and easier.

Extension cable: The fixture body of PavoSlim 60B/120B comes with a 0.4M DC connection cable, connected with the control unit through a 2.6M DC connection cable, and it can also be connected with another 2.6M connection cable as an extension.

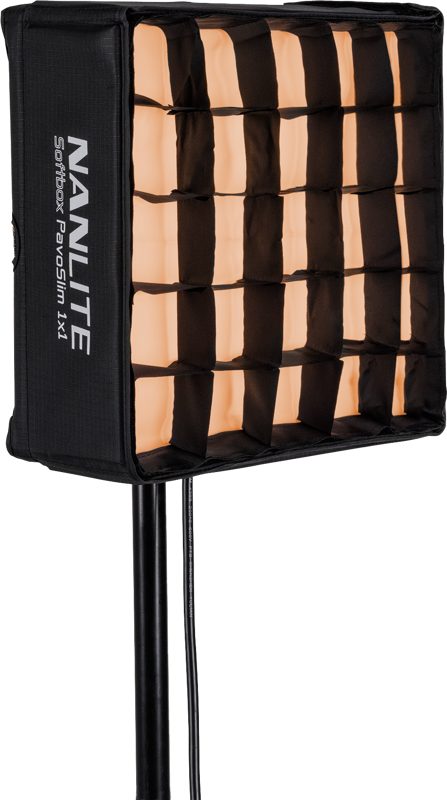

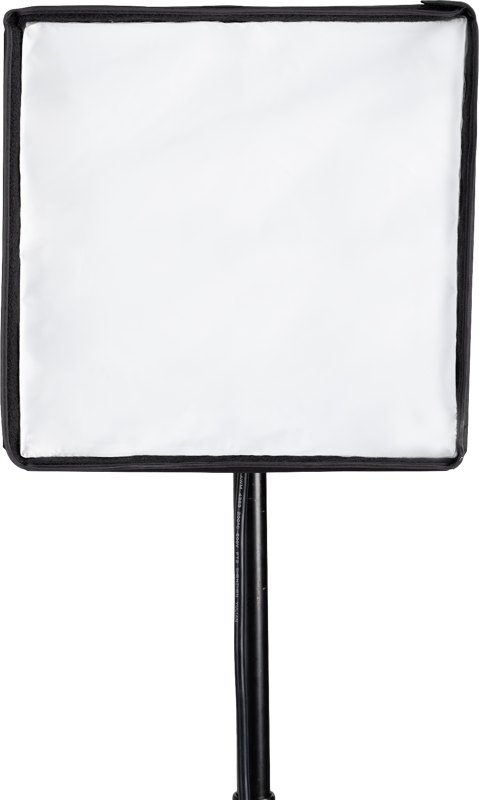

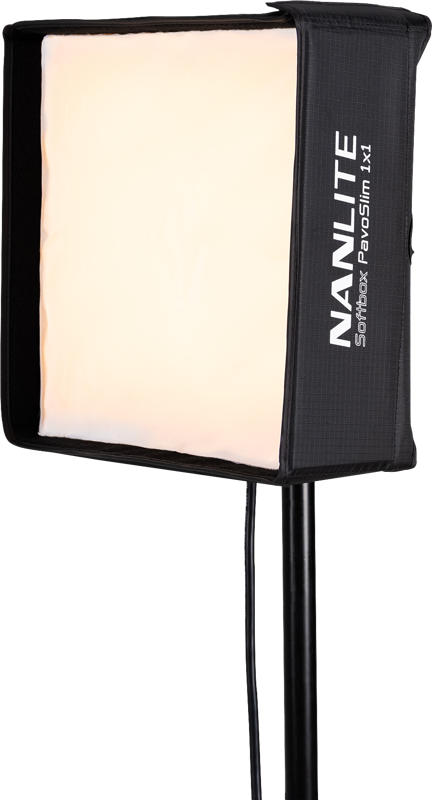

Softboxes

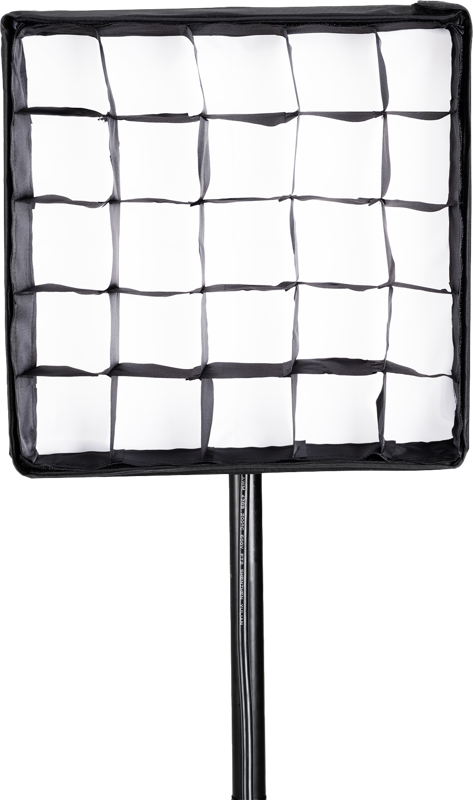

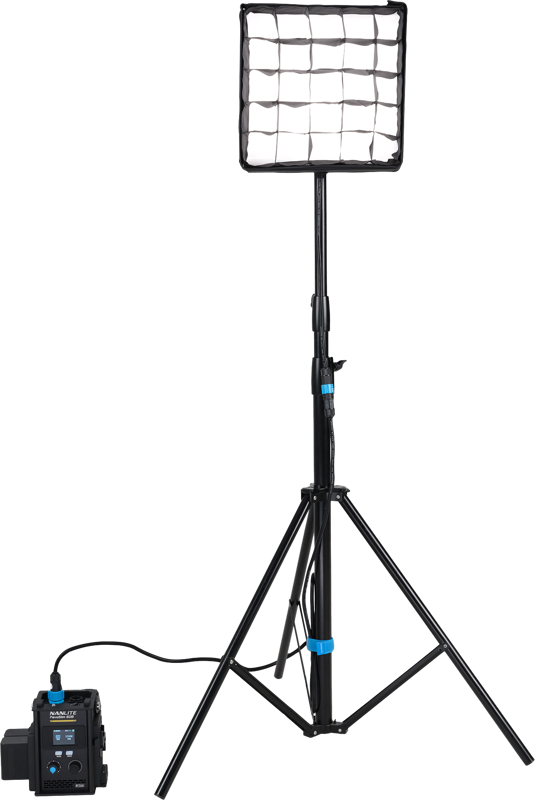

There are custom-made foldable softboxes and egg crates for both horizontal and vertical coupling.

Slender & Durable Case

The included carrying bag follows the design concept of the Nanlite family. A solid structure with internal explicit space partitions helps store more conveniently. The external reinforced stitching ensures a more durable bag.

PavoSlim 60B includes:
