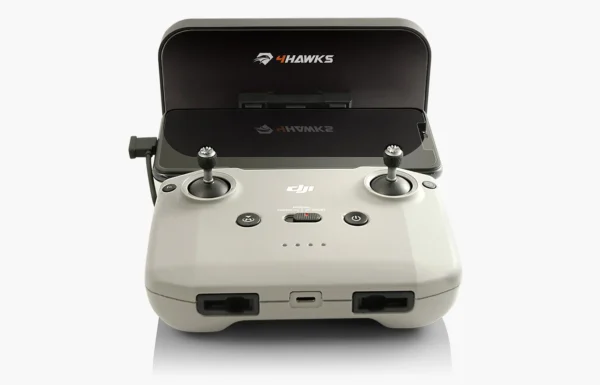

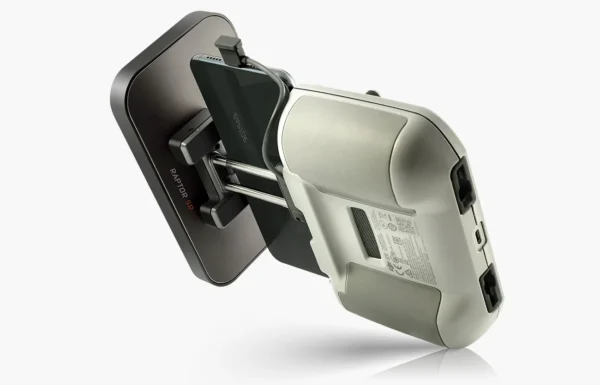

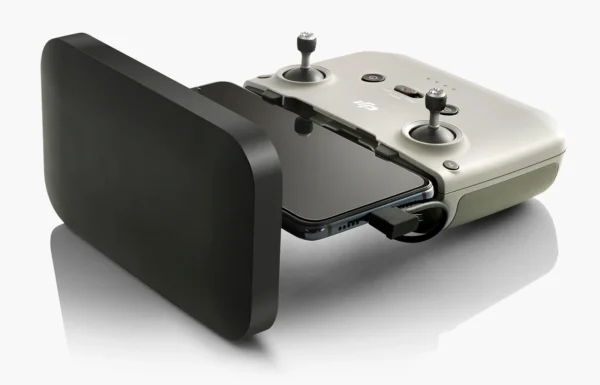

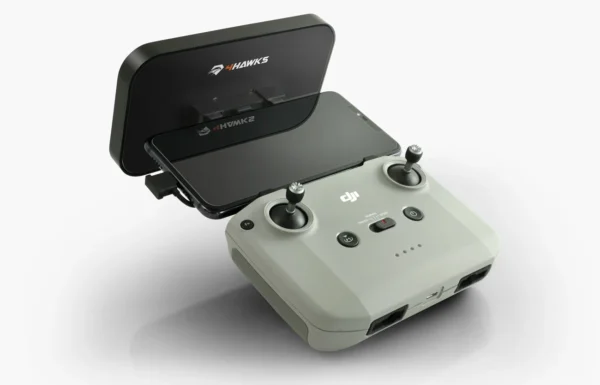

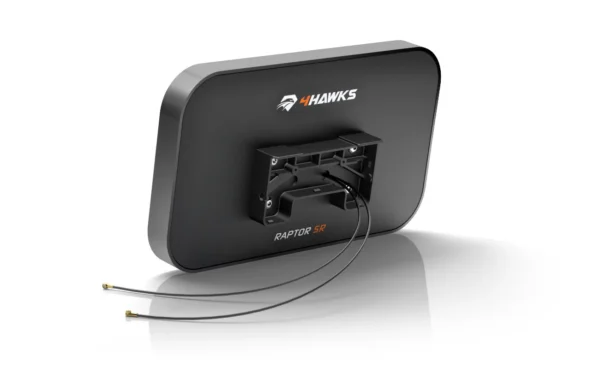

Raptor SR Panel Antenna (DJI RC-N1)

The Raptor SR panel antenna enhances signal quality and extends flight range. It is compatible with the DJI RC-N1 remote controller, used by the following DJI drones:

Mavic 3
Mini 2 SE
Air 2S
Mini 3
Mini 3 Pro

Note: Installation of the product requires extensive technical skills; installation services are available upon request. Contact info@droon.gramet.ee.

Description

Its long range allows its user to reach places that were earlier completely inaccessible, such as deep forests, canyons, lakes etc. 4Hawks antenna for DJI Mavic model is highly advanced, operating in both 2.4GHz as well as 5GHz frequencies The concept behind the look of the antenna was to make it look like it was a part of the drone by default. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click”. This way you can be sure that you do not lose the connection with your drone.

VSWR, Separation between connectors & characteristic patter of Raptor antennas

Raptor SR for Spark 2.4 GHz Port 1 & Port 2, Radiation Pattern.png
